Eye Link Belt
Classification :
Product Description
Eye link belt wire is formed into Eye-link shape and join with rod. With high tensile strength of wire ring enhance mesh belt is more durable. Belt edge finish can assembly with reinforcing plate links or chain. Eye link belt can add side and center cleats to prevent the products from falling down to the ground.

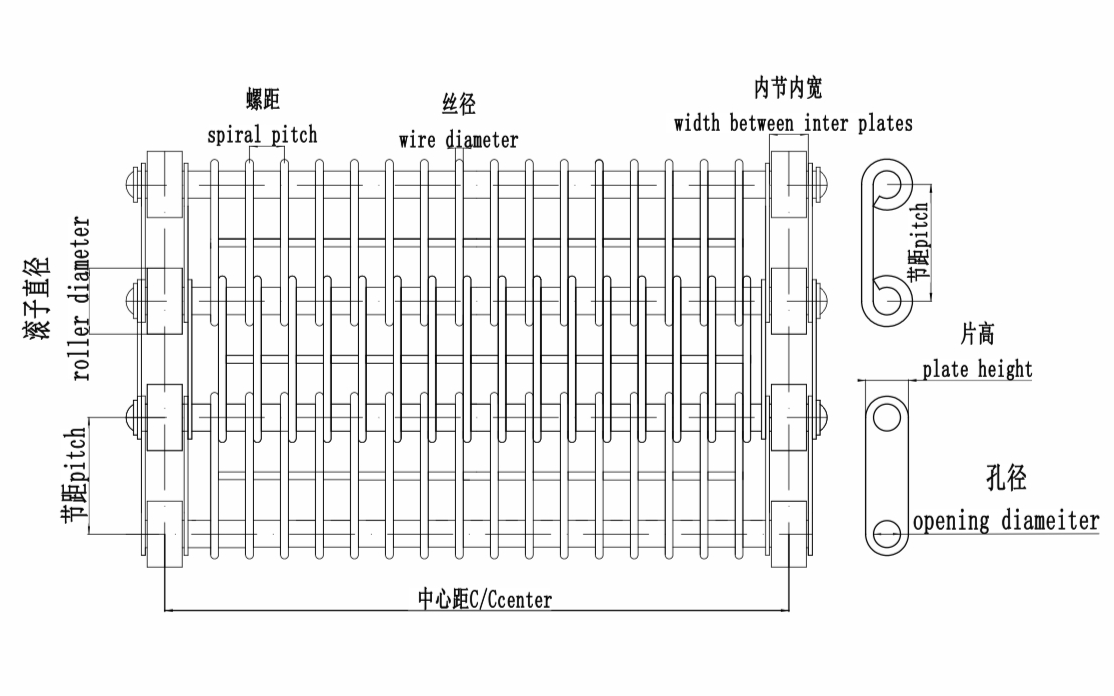

Product Parameter
| Material | SUS304 , SUS316 |
| Pitch(mm) | 25.4, 31.75, 38.1, 50.8, 63.5, 76.2 |
| Rod diameter(mm) | 5 , 6 , 7 , 8 , 10 , 12 |
| Wire diameter(mm) | 1.2 , 1.5 , 1.6 , 1.8 , 2 , 2.5 , 3 |
| Spiral pitch(mm) | 2.4 - 100 |
| Rod pitch(mm) | 25.4 , 31.75 , 38.1 , 50.8 , 63.5 , 76.2 |
| Belt width(mm) | 200- 6000 |
| Edge finish | Edge finish |
| Belt Length | Customized |
| Sprocket | Material & sprocket special is customized as per request |
Product Feature
1️⃣ Large opening area, good air circulation and dehydration performance
2️⃣ Driven by sprocket to ensure the stable running and accurate tracking
3️⃣ Belt surface and can be used for the transportation of unstable products. It can bear higher load and tensile strength
4️⃣ Belt working temperature range of-96℃ to 600℃
5️⃣ Easy clean,assemble and maintenance, solid belts with a long life

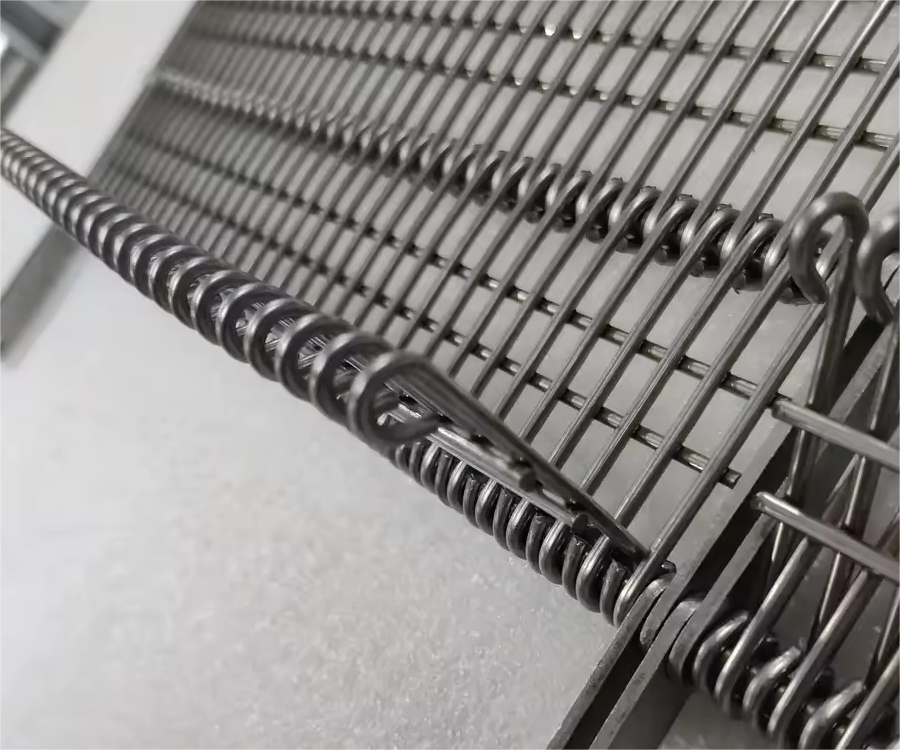

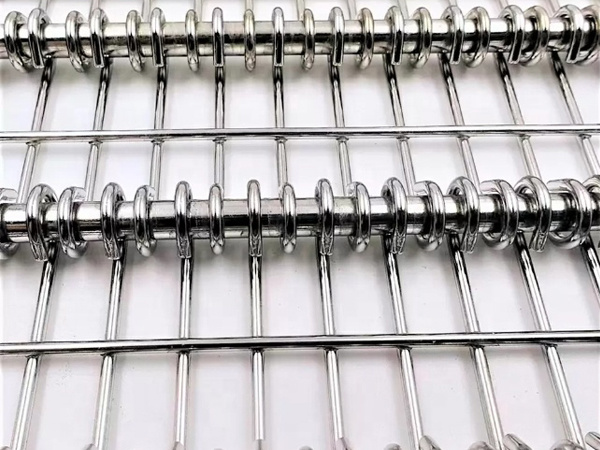

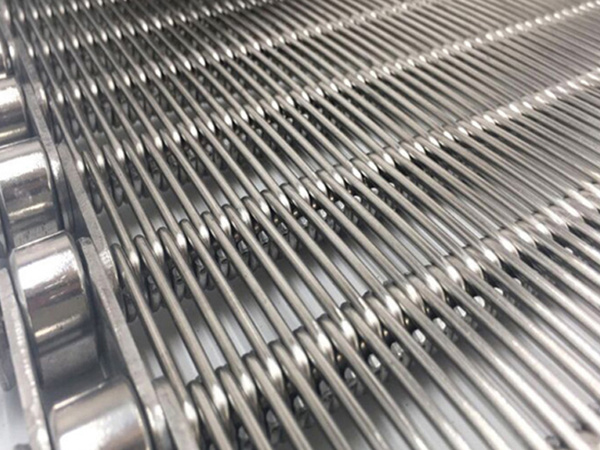

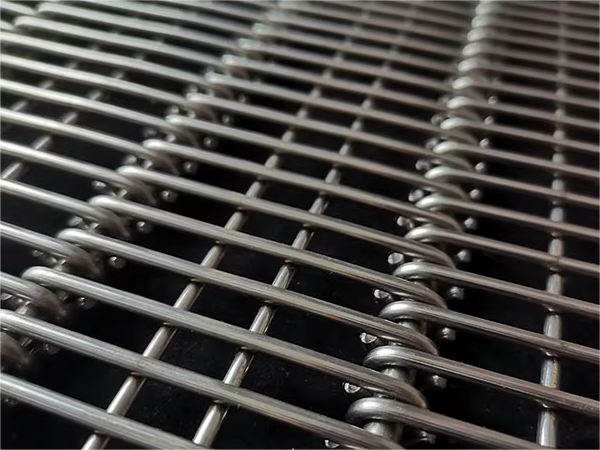

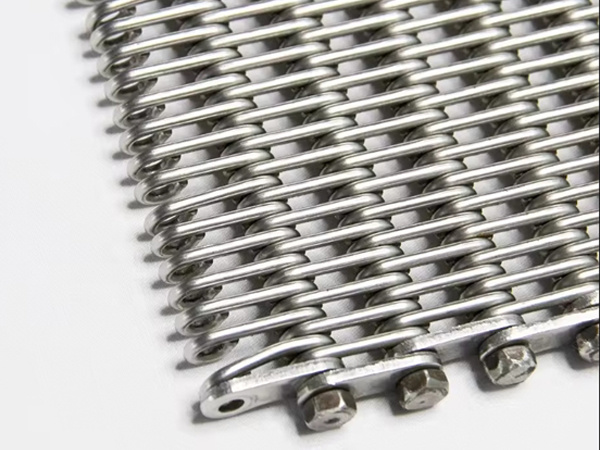

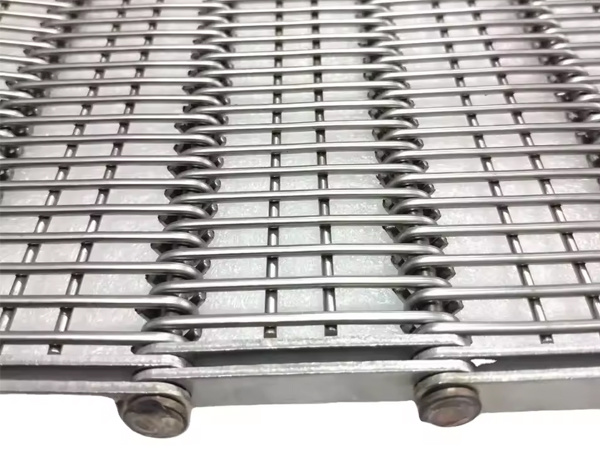

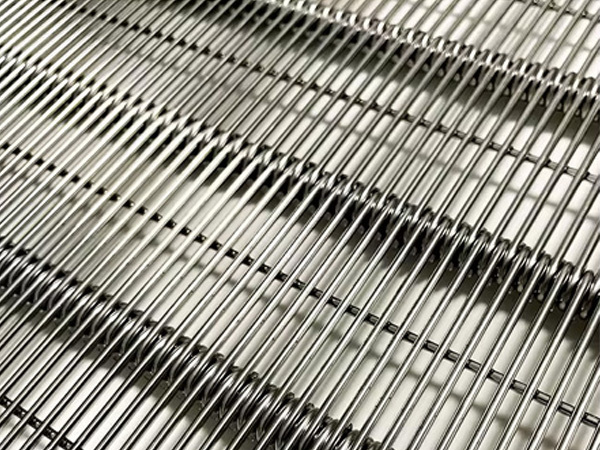

Product Picture

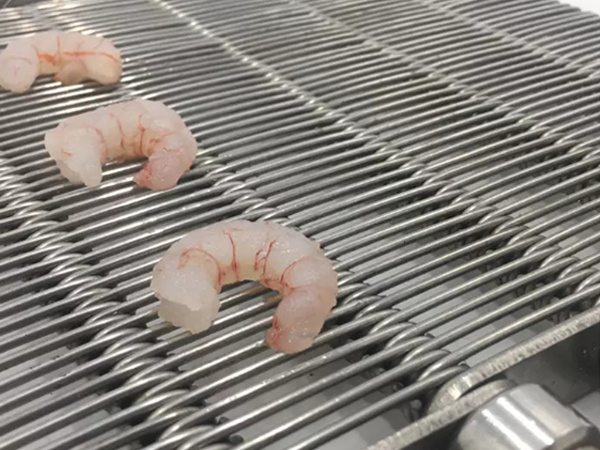

Application
CUSTOMER VISIT
Our company has strong technical strength and advanced technology, with multiple laser cutting machines and CNC bending machines. The factory now has more than 300 skilled technical staffs, ensuring stable product quality and fast delivery time.
FAQ
How long is your delivery time?
Q: Generally 10 days,Or 15-20 days ,according to the quantity.
How to pack?
Q: Can be packaged according to customer's needs
Are we a trader or a manufacturer?
Q: We are a manufacturer and have our own factory.
I want a specific size and can I get customized?
A：Yes. Customization is available. size (length, width, thickness, etc.), Please send us your requirements, we will meet your requirements.
