Chain Plate Belt
Classification :
Product Description
Chain plate belt has its sturdy structure, driven by roller chains, suitable for conveying fine and dense materials, with a smooth conveying process and easy installation and replacement and long service life.The chain plate is supported by a single axis, and can be punched or flat according to needs without a surface.The two ends of the chain can be fixed with pins or washers.
The design of the chain plate can add side baffles at the edge of the conveyor belt and baffles in the middle of the conveyor belt.
Product Parameter
| Material | Carbon steel , SUS201 , SUS304 , SUS316 |
| Rod pitch (mm) | 19.05 , 25.4 , 31.75 , 38.1 , 50.8 , 76.2 |
| Strip thickness (mm) | 5 , 6 , 8 , 10 , 12 |
| Plate thickness (mm) | 0.8 , 1 , 1.2 , 1.5 , 2 , 2.5 , 3 |
| Belt width(mm | 200- 4000 |
| Edge finish | Welded / Split Pin |
| Belt Length | Customized |
| Customized | Material & sprocket special is customized as per request |
Product Feature
1️⃣ Sturdy and high loading capacity that can load heavy duty products
2️⃣ Made of metal plate, which can bear high load and tensile strength
3️⃣ Self-supporting structure does not require any other support
4️⃣ Driven by sprockets to ensure the stable running and accurate tracking
5️⃣ Low maintenance, easy to clean and install

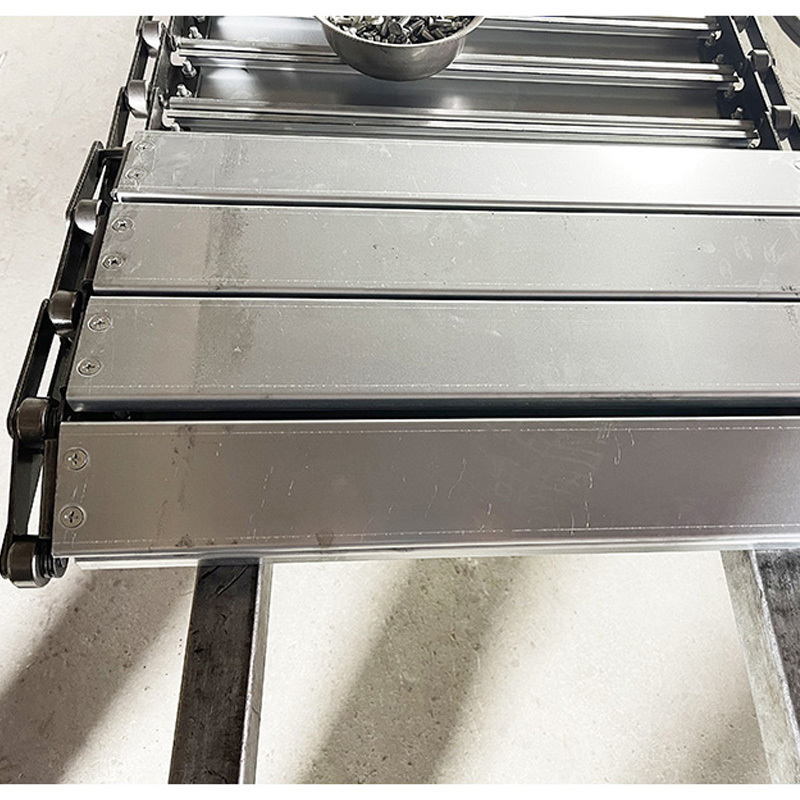

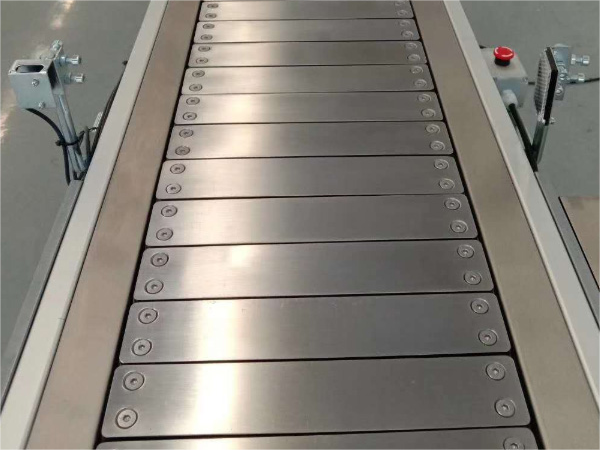

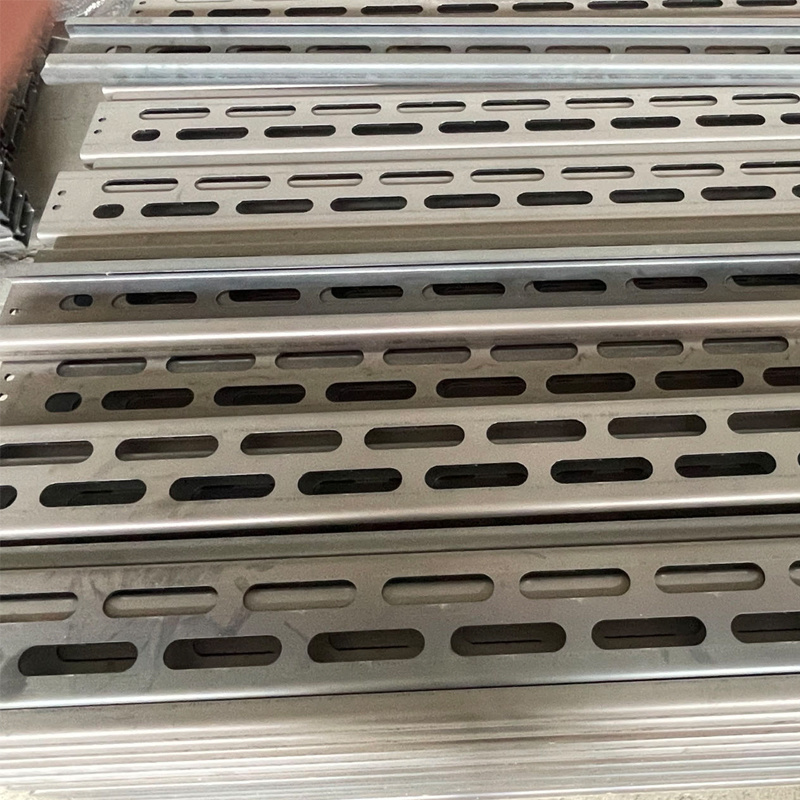

Product Picture

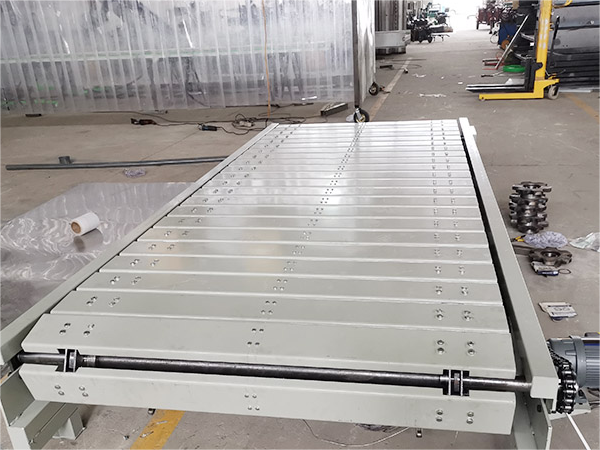

Application
CUSTOMER VISIT
Our company has strong technical strength and advanced technology, with multiple laser cutting machines and CNC bending machines. The factory now has more than 300 skilled technical staffs, ensuring stable product quality and fast delivery time.
FAQ
How long is your delivery time?
Q: Generally 10 days,Or 15-20 days ,according to the quantity.
How to pack?
Q: Can be packaged according to customer's needs
Are we a trader or a manufacturer?
Q: We are a manufacturer and have our own factory.
I want a specific size and can I get customized?
A：Yes. Customization is available. size (length, width, thickness, etc.), Please send us your requirements, we will meet your requirements.
Keywords:Chain plate belt
