Flat Wire Belt
Classification :
Product Description
Flat wire belt is made from cross rod and flat strip. Belt Edge cab be welded edge or clenched. Side guard and flight are available. It is easy to maintain and clean and long belt service life.

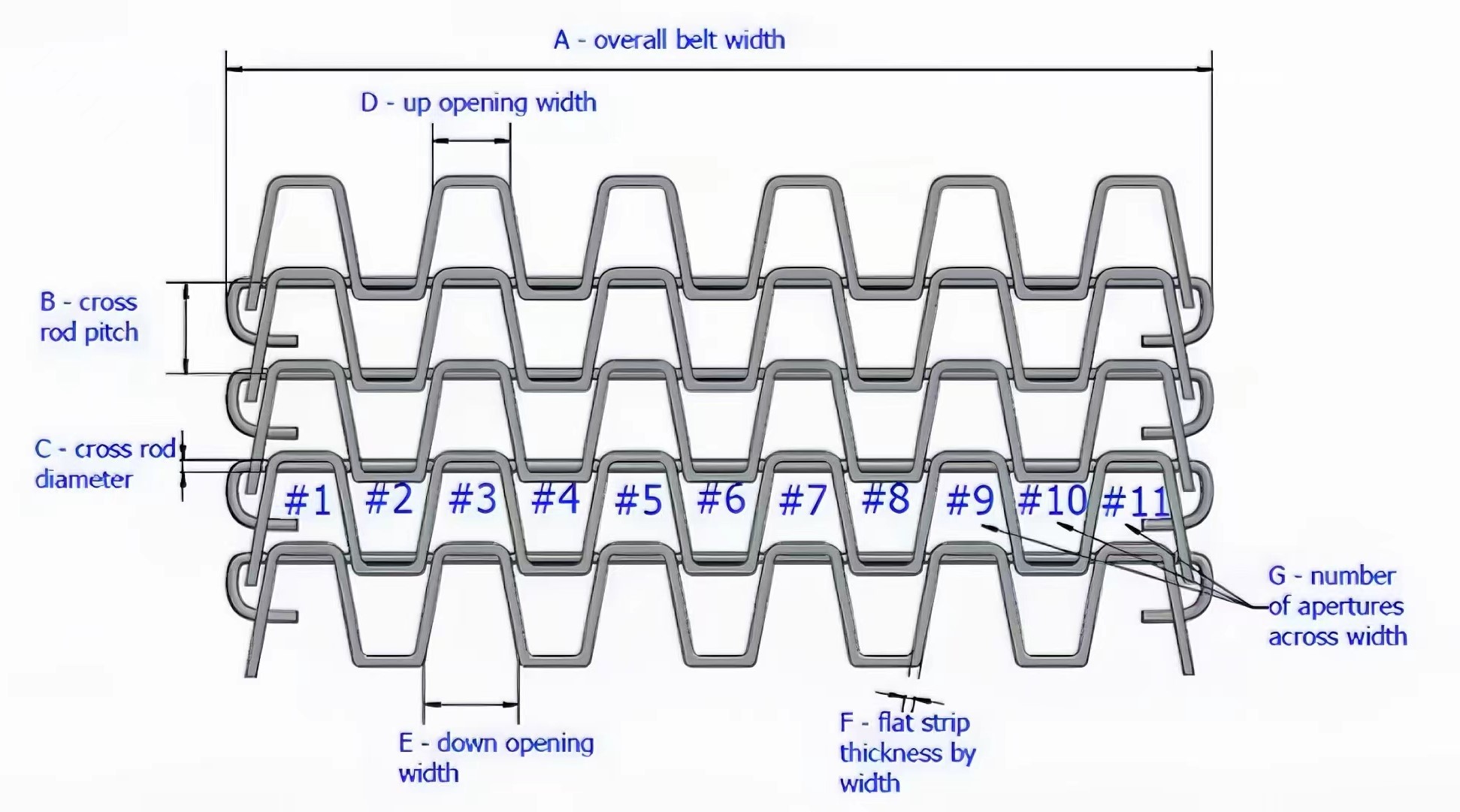

Product Parameter
| Material | Carbon steel , SUS201 , SUS304 , SUS316 |
| Spiral pitch(mm) | 12.7 - 40 |
| Rod pitch(mm) | 12.7 , 25.4 , 38.1 , 50.8 |
| Rod diameter(mm) | 1.2 , 1.6 , 2 |
| Strip thickness (mm) | 3 , 4 , 5 , 6 , 8 |
| Belt width(mm) | 200- 4000 |
| Edge finish | Welded / Clenched |
| Belt Length | Customized |

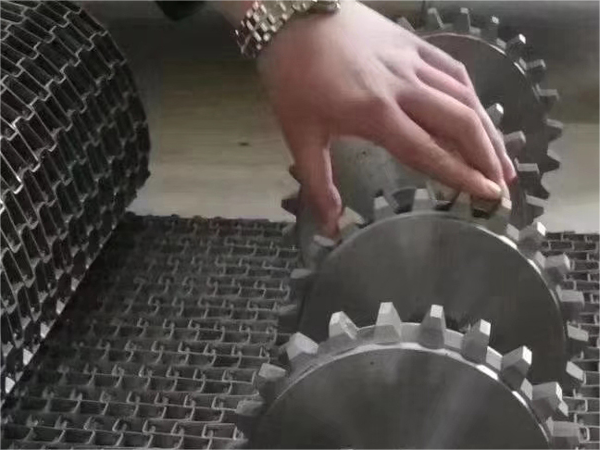

| Sprocket | Material & sprocket special is customized as per request |
Product Feature
1️⃣ Flat and smooth conveying surface to carry unstable produce
2️⃣ Large open area for free air flow or water drainage
3️⃣ High strength to ensure can higher load and tensile strength
4️⃣ Low maintenance, easy to clean and install
5️⃣ Driven by sprocket to ensure the stable running and accurate tracking

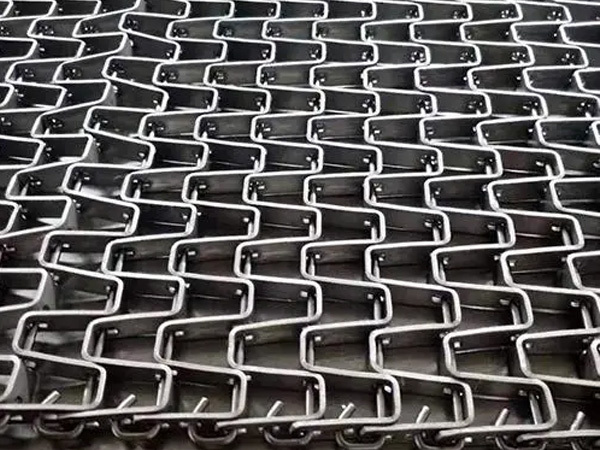

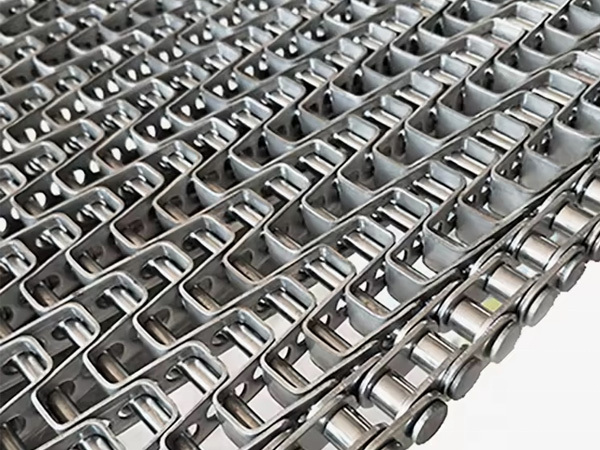

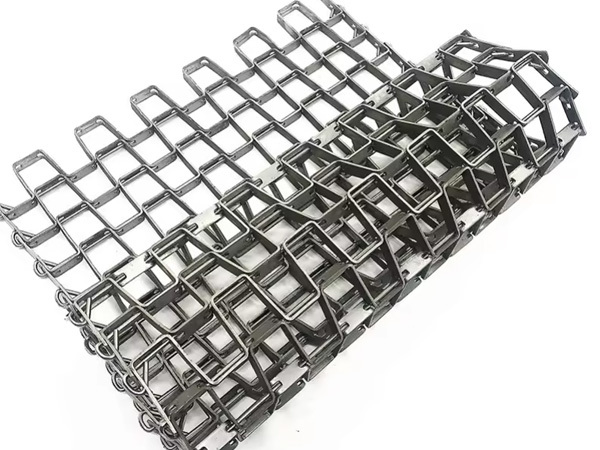

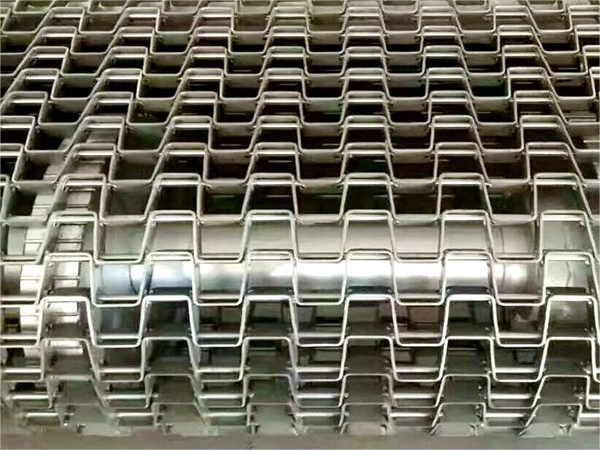

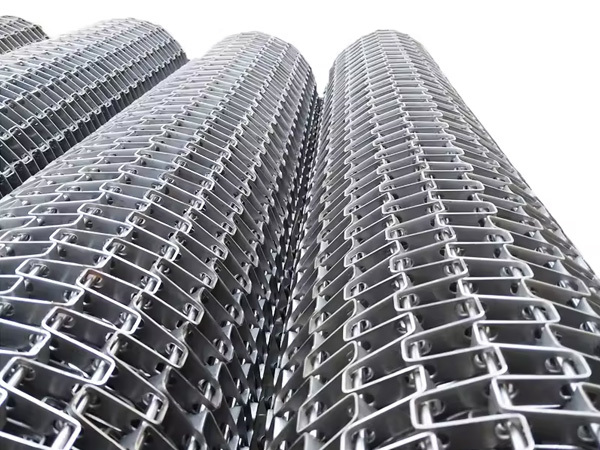

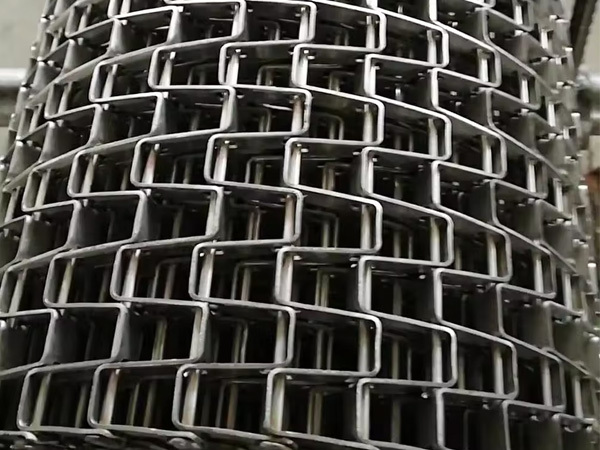

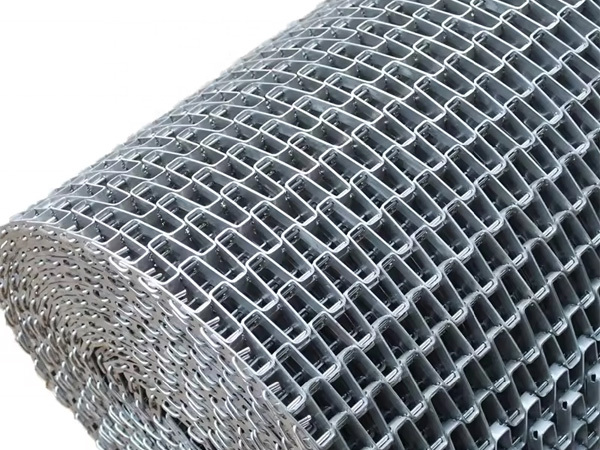

Product Picture

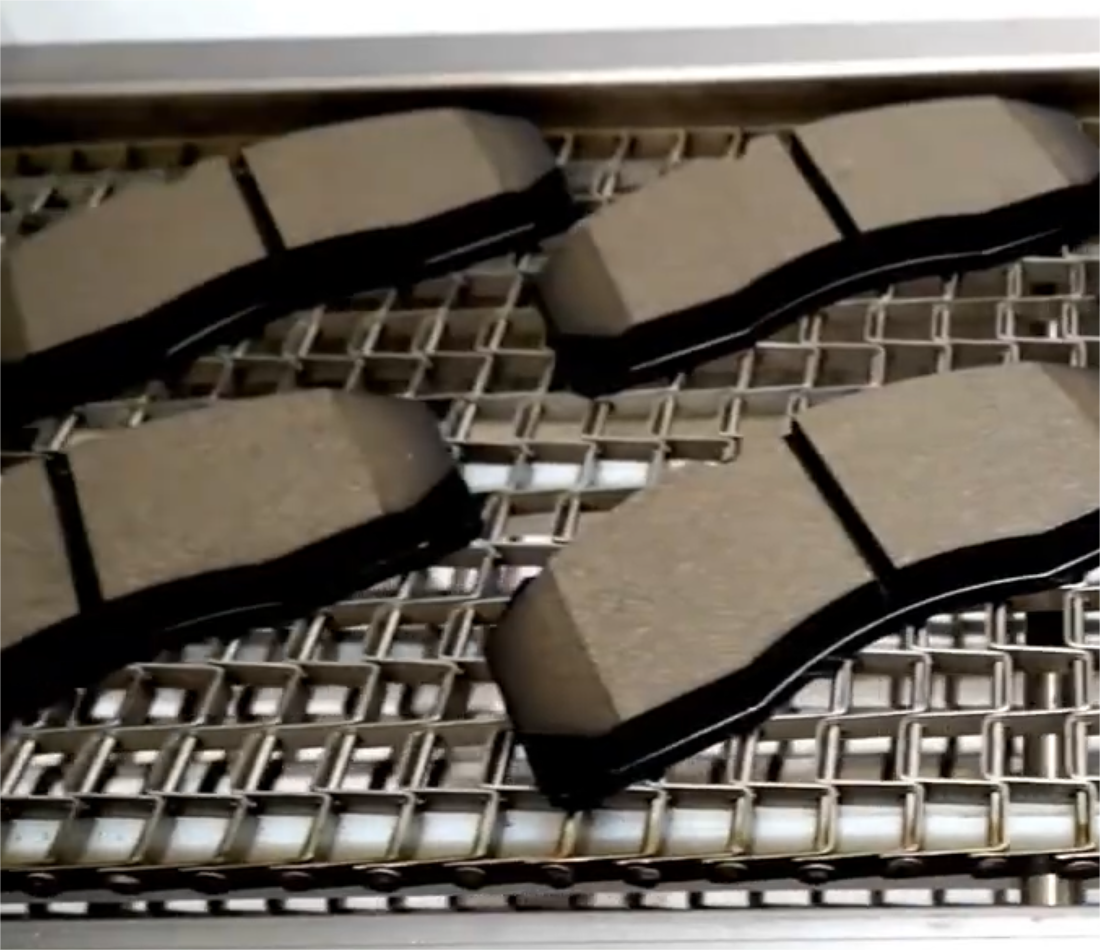

Application
CUSTOMER VISIT
Our company has strong technical strength and advanced technology, with multiple laser cutting machines and CNC bending machines. The factory now has more than 300 skilled technical staffs, ensuring stable product quality and fast delivery time.
FAQ
How long is your delivery time?
Q: Generally 10 days,Or 15-20 days ,according to the quantity.
How to pack?
Q: Can be packaged according to customer's needs
Are we a trader or a manufacturer?
Q: We are a manufacturer and have our own factory.
I want a specific size and can I get customized?
A：Yes. Customization is available. size (length, width, thickness, etc.), Please send us your requirements, we will meet your requirements.
