Radius Turning Conveyor

Mesh belt conveyor is a material handling machine that continuously conveys materials on a certain line, also known as continuous conveyor, which can be divided into mesh belt type and mesh chain type. The conveyor can carry out horizontal, inclined and vertical conveying, and can also form a space conveying line, and the conveying line is generally fixed.

Classification :

Mesh Belt Conveyor

+8613608925317

sale@cnsdgroup.com

Product Description

The radius belt is constructed of cross rods with chain links on both sides and, in most cases, is provided with balanced weaved spiral mesh for product support. The thickness of the spiral wire and the spiral pitch can be chosen at will and allow the belt to give optimal product support. The belt can also be provided with reinforcing links, extra plate links for product conduction, or with flights.

Parameter

Frame Material	Carbon steel , Galvanized,Aluminum profile， SUS201,SUS304
Conveyor Belt Type	PVC, PU, chain plate, modular belt, plastic chains, flexible chains and belts, rollers
Wire diameter	0.8-5 mm
Belt Speed	Adjustable 0.1-10 m/min
Belt width	150mm-5000 mm Customized
Voltage	220V/380V
Drive Form	Motor driven transport

Feature

1️⃣ Large conveying capacity. The maximum conveying capacity can reach 526m3/h, and the maximum inclination Angle can reach 60 degrees

2️⃣ Good corrosion resistance, wear resistance, high temperature resistant performance, etc. It can transport materials with temperature less than 600 degrees

3️⃣ Cold resistance, oxidation resistance and fracture resistance are satisfied at low and high temperature

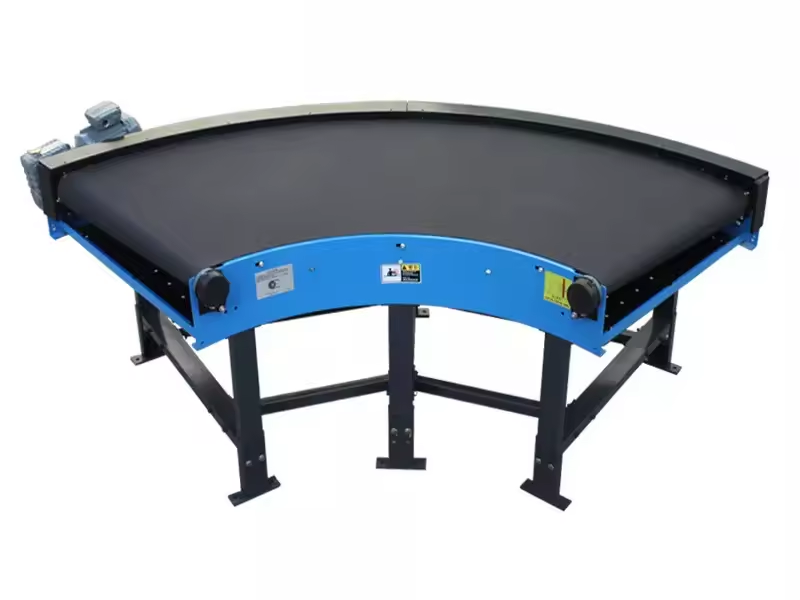

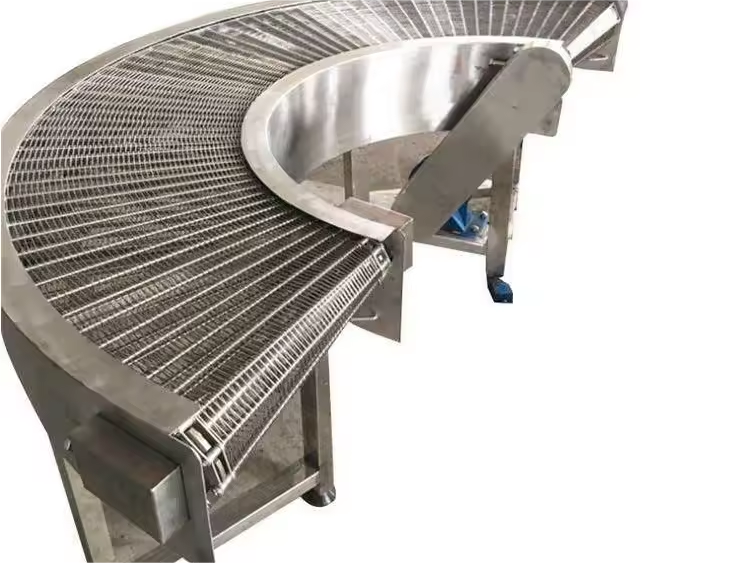

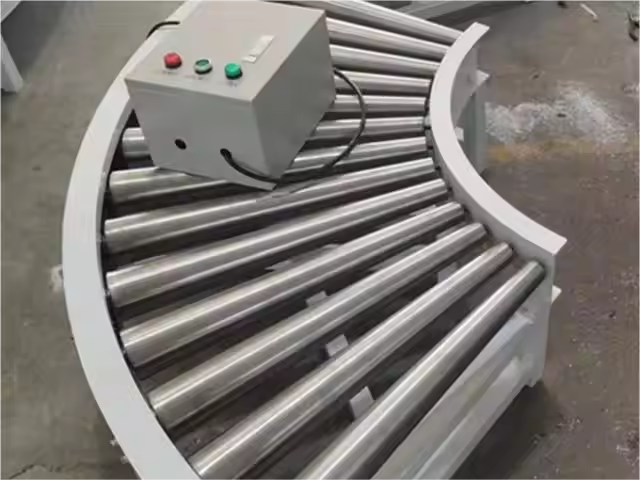

Product Picture

Application

The radius belt is a highly usable conveyor belt. The belt has been designed for a great many applications, constructions and process conditions. The belt is eminently suitable for cooling or freezing products such as snacks, bread, pastry, vegetables, potatoes, fish and meat, as well as for blanching vegetables or proofing dough. The belt is used in radius systems, spiral towers as well as in curved and straight conveyors.

CUSTOMER VISIT

Our company has strong technical strength and advanced technology, with multiple laser cutting machines and CNC bending machines. The factory now has more than 300 skilled technical staffs, ensuring stable product quality and fast delivery time.

FAQ

How long is your delivery time?

Q: Generally 10 days,Or 15-20 days ,according to the quantity.

How to pack?

Q: Can be packaged according to customer's needs

Are we a trader or a manufacturer?

Q: We are a manufacturer and have our own factory.

I want a specific size and can I get customized?

A：Yes. Customization is available. size (length, width, thickness, etc.), Please send us your requirements, we will meet your requirements.
